Wichard HR D Shackle – Diameter 15/64″

WICHARD HR D SHACKLE 5/16″

HR D Shackle – Diameter 15/64″

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Working load (lb) 2290
• WLL (lb) 1010
• Breaking load (lb) 5070
• Weight (lb) 0.053

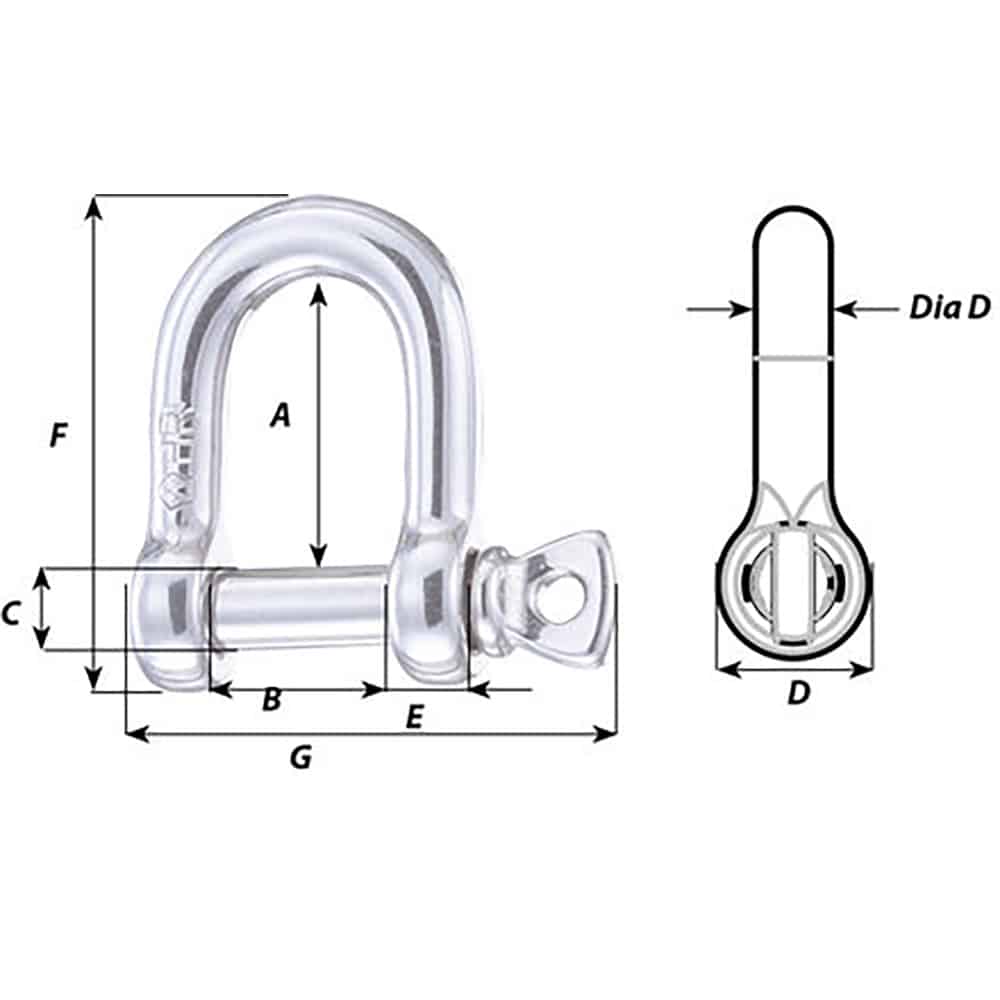

• A (inch) 25/32″
• B (inch) 15/32″
• C (inch) 15/64″
• D (inch) 5/8″
• D diameter (inch) 15/64″
• E (inch) 9/32″
• F (inch) 1 13/16″
• G (inch) 1 13/16″
