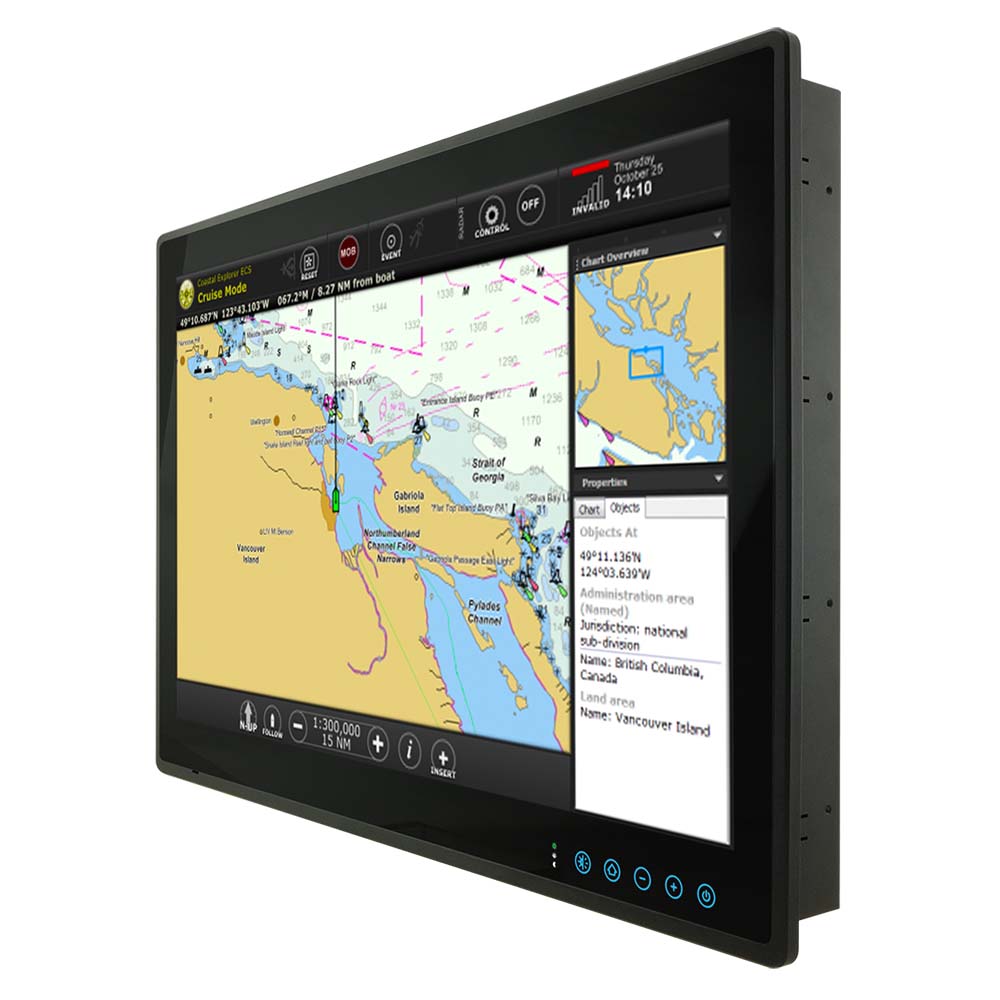

Seatronx 24″ Commercial Touch Screen Display

SEATRONX 24″ COMMERICAL TOUCH SCREEN DISPLAY – 1920X1080

24″ Commercial Touch Screen Display

Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).

Features:

• Mounting – Panel Mount , Vesa Mount
• Dimensions – 23.43″ x 15.16″ x 2.51″
• Cutout Dimensions – 22.51″ x 14.29″
• Projected Capacitive touch
• Optional ECDIS Color Calibration
• 2x 2W Speakers
• 76 dB – 80 dB buzzer

Technical Specifications:

• Diagonal (active area) Inch – 24″
• Native Resolution (Pixels) – 1920×1080
• Contrast Ratio – 5000:1
• Brightness – 350
• Viewing Angle (left, right) – 89, 89
• Viewing Angle (up, down) – 89,89
• Backlight Dimming – -0 (3 Stage ECDIS Option)
• Inputs – 2 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
• Power Source – 9-36VDC Isolated power supply 70W (Max)
• Power on/off dimming control – Front Bezel
• IP Rating – IP65 Front
• Operating Temperature (°C) – -15 to 55
