Newmar PTMS-24-67 Charger System

NEWMAR PTMS24-67 CHARGER SYSTEM

PTMS-24-67 Charger System

The PTM charger provides a significant improvement in system reliability by utilizing multiple independent charger modules that plug into the unit, and should a fault occur in one module, the system continues to operate, thus being considered a “fault”.

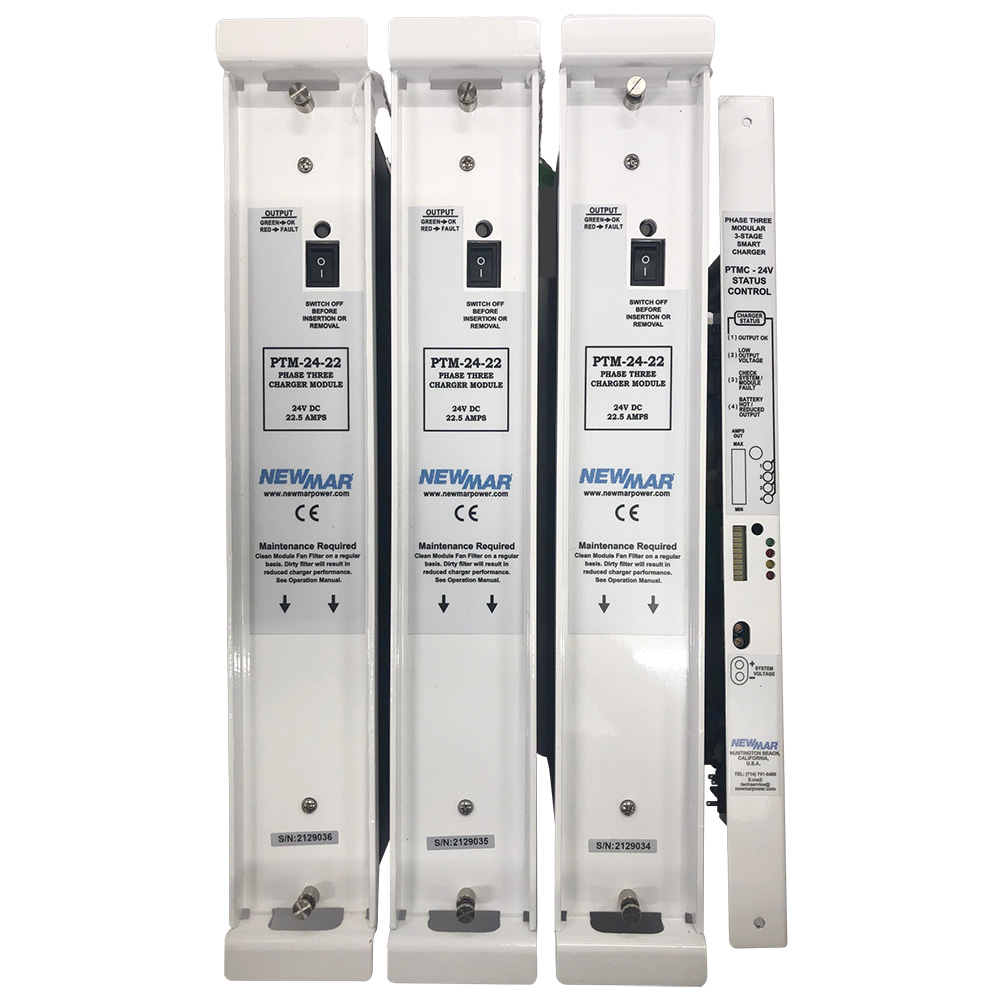

The system consists of a wall-mount case that serves as a connection point to AC input and battery output (3 banks) and contains three front-facing power bays, each accommodating a 22.5-amp charger module that slides and locks in place, creating a 24V, 67-amp charger. If a module fault occurs, a front panel indicator and alarm relay are activated, and the system continues operating on the other modules. A fourth bay houses the “smart” controller circuit that provides 3-step charging, temperature compensation, system status LEDs, alarm contacts, and indicators. Should the controller suffer a fault, the charger will still operate at full power in float voltage mode. The controller module is also configured for easy plug-in replacement in the field.

Vessel operators appreciate this system approach to reliability and serviceability, whereby a fault in one of the modules is easily identified and it can be quickly replaced with an on-hand spare or an exchange unit from the factory, all the while the charging system and the vessel continue to operate.

Reliability

Redundant, independent 22.5 amp charger modules increase reliability; a malfunction of one does not disable the charging system; the remaining modules continue to operate.

Serviceability:

• Module change-out takes only minutes via plug-and-play configuration while the system continues to operate
• Technical personnel not required
• No need to remove the charger case from the boat or disconnect any wiring
• No inconvenience of power interruption to the boat

Features:

• Three-stage “smart” charging; bulk, absorption, float
• Battery type selector switch; gel-cell, lead-acid, AGM
• Temperature-compensated output via sensor
• 24 Volt; 22-67 amps
• “Universal” input of 90-264 VAC, 50-60 Hz. – can be used anywhere in the world
• Powder-coated stainless steel case
• ABS approved as a redundant power system for essential services as well as a battery charger

Specifications:

• Modules Installed: 3
• Max Output Amps: 67
• Max Input Amps @ 115/230 VAC: 18/9
• Dimensions: 20.9 x 10.9 x 8.8 inches (53.1 x 27.7 x 22.4 centimeters)
• Weight (lbs/kg): 35/16

Input Specifications:

• Voltage/Frequency: 90-264 VAC, 47-63 Hz, single phase; derate linearly from 100% output @ 105 VAC to 80% output @ 90 VAC
• Amperage: 18 @ 120 VAC; 9 @ 230 VAC
• Power Factor: .96-.99
• Efficiency: 85% typical

Output Specifications:

• Output Amps: 67 total
• Nominal Charge/Float Voltages: Gel-Cell: 28.0 VDC @ 50% load/27.2 @ .5A load; Flooded/AGM: 28.4 @ 50% load/26.8 @ 5A load
• Temperature Compensation (Option): – 5 mV per cell per degrees C (typical), requires optional sensor model TCS-12/24
• Battery Banks: 3 (Recommended Battery Type/Capacity: Gel-Cell, Flooded or Sealed Lead-Acid, 120-600 A-H)

Status Indicators/Signal Outputs

Output OK, No Output, Check System, Battery Too Hot, Total Output Bar Graph, Output Voltage Test Points, Contacts for Optional Remote Alarm)

Temperature Rating

0-60 degrees C; derate linearly from 100% output @ 50 degrees C to 80% output @ 60 degrees C)

Mechanical Specifications:

• Case Material: Powder Coated Stainless Steel
• Weight: With three modules installed: 34 lbs/15.5 kg.
• Empty: 16 lbs/7.3 kg.
• Cooling: Forced air per module

Individual Module Specifications:

• Model: PTM-24-22 (24 volt)
• Input Voltage/Frequency: 90-264 VAC; 47-63 Hz; derate linearly from 100% output @ 105
• VAC to 80% output @ 90 VAC
• Input Current: 3 amps @ 230VAC; 6 amps @ 115 VAC
• Output Current: 22.5 amps max in Bulk Phase; 20 amps max in Absorption/Float Phases
• Power Factor: .96-.99
• Efficiency: 85% typical
• Protection Features: Input Fuse, Output Fuse, Current Limiting, Over Voltage Protection,
• Cooling Fan, Automatic Thermal Shutdown/Recovery
• Status Indicators: Output OK/FAULT
• Weight: 6 lbs.

Optional Accessories:

• Temperature Compensation Sensor: Model TCS-12/24 with 25′ of cable

Compliances:

• ABS-type approved redundant power system for essential services and as a battery charger, UL Recognized; E183223, Level 3
• Safety: EN60950-1 USA, Canada, Europe EMI Radiated and Conducted: FCC Part 15 Level A; EN55022 Class A
