PTM-24-22 Charge Module – Only Use with PTMS

The PTM charger provides a significant improvement in system reliability by utilizing multiple independent charger modules that plug into the unit, and should a fault occur in one module, the system continues to operate, thus being considered a “fault”.

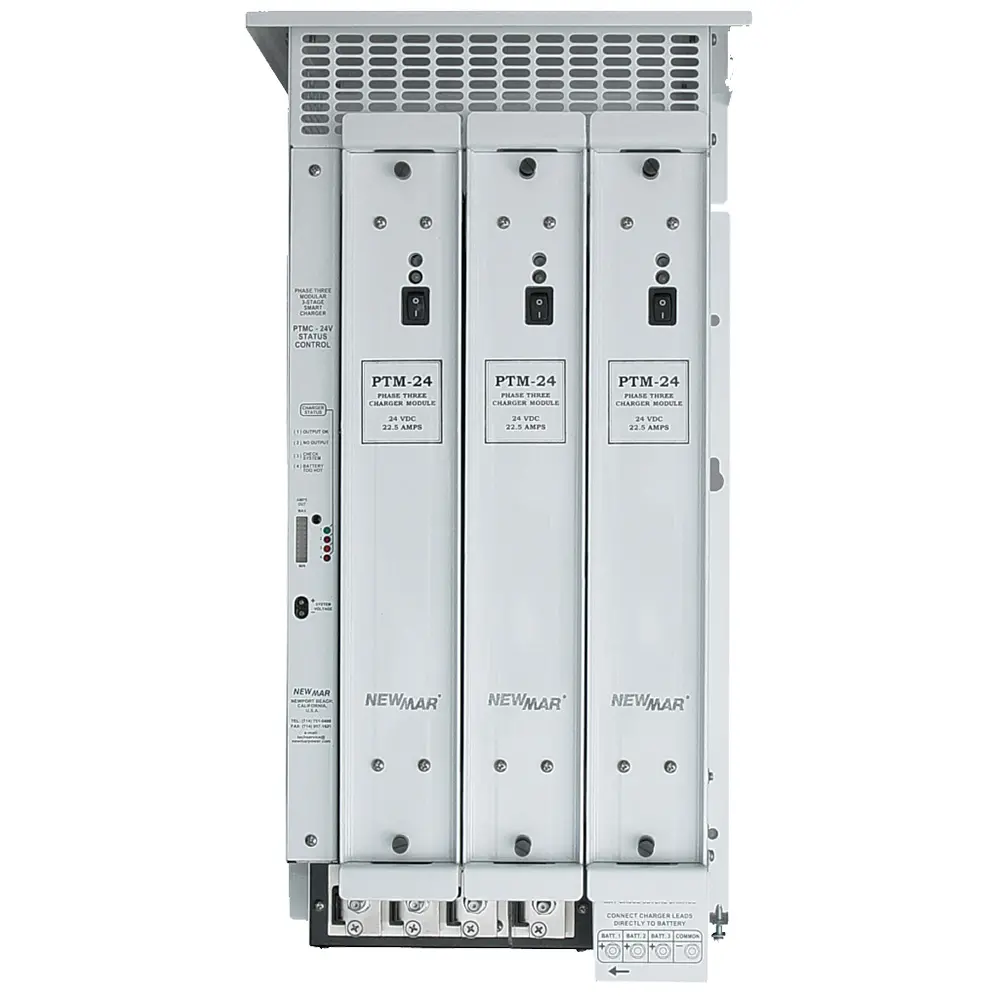

The system consists of a wall-mount case that serves as a connection point to AC input and battery output (3 banks) and contains three front-facing power bays, each accommodating a 22.5-amp charger module that slides and locks in place, creating a 24V, 67-amp charger.

Features:

• Individual Module (24 volt)

Individual Module Specifications:

• Input Voltage/Frequency: 90-264 VAC; 47-63 Hz; derate linearly from 100% output @ 105
• VAC to 80% output @ 90 VAC
• Input Current: 3 amps @ 230VAC; 6 amps @ 115 VAC
• Output Current: 22.5 amps max in Bulk Phase; 20 amps max in Absorption/Float Phases
• Power Factor: .96-.99
• Efficiency: 85% typical
• Protection Features: Input Fuse, Output Fuse, Current Limiting, Over Voltage Protection, Cooling Fan, Automatic Thermal Shutdown/Recovery
• Status Indicators: Output OK/FAULT
• Weight: 6 lbs.
