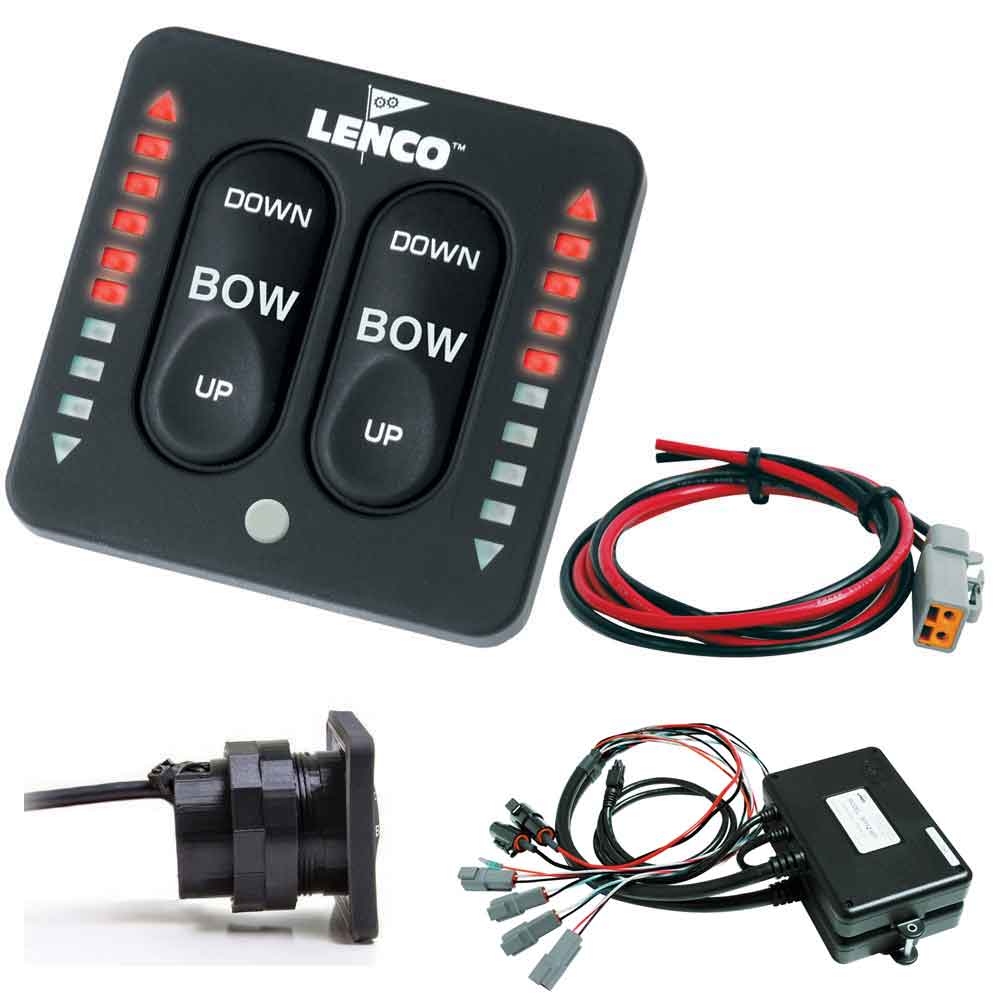

Lenco LED Indicator Two-Piece Tactile Switch Kit w/Pigtail f/Dual Actuator Systems

LENCO LED INDICATOR TWO-PIECE TACTILE SWITCH DUAL ACTUATOR

LED Indicator Two-Piece Tactile Switch Kit w/Pigtail f/Dual Actuator Systems

This LED tactile switch kit has a shortened bezel for consoles which require less depth to mount. Functionality is built into the externally mounted control box and must be mounted separately.

LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.

Features Include

• Simple, quick, Plug & Play installation
• Built-in retractor
• Low profile design
• Self-contained, sealed key pad & solid state control box with waterproof Plug & Play Deutsch connectors
• 72″ power pigtail for control box
• 2 1/16″ hole cut-out size, overall key pad size of 2.75″ x 2.75″
• 2.33″ clearance required from the back of the key pad’s mounting location
• 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
• Photo Eye for optimum viewing in all light conditions
• Backlit key pad for optimum viewing at night

ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.

Replacement parts are available and are sold separately.

Specifications

• 3 Year Warranty
• System Type: Dual Actuator
• Compliance: CE Certified
