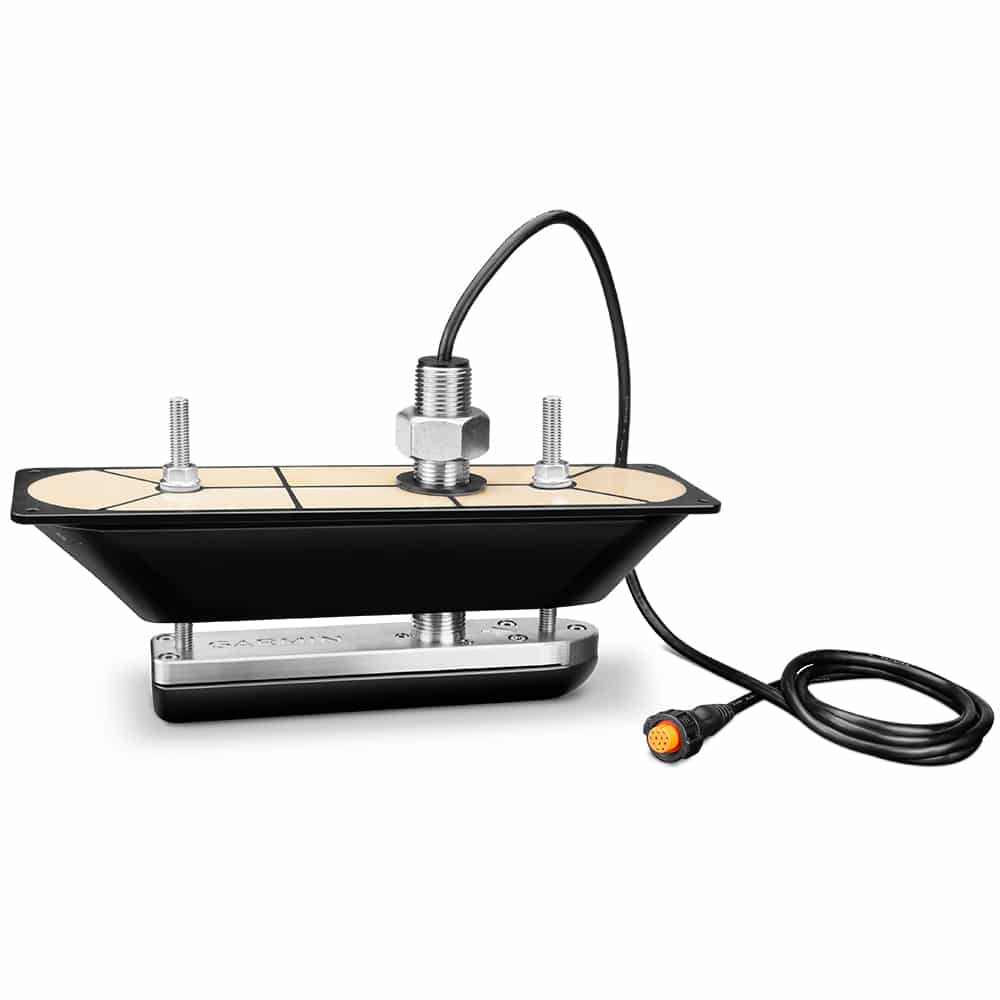

Garmin GT34UHD-TH Ultra HD Thru-Hull Transducer

GARMIN GT34UHD-TH ULTRA HD THRU-HULL TRANSDUCER

GT34UHD-TH Ultra HD Thru-Hull Transducer

Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearVü: 0.74° x 46°
• Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth:

• Ultra High-Defintion ClearVü: 200′ down
• Ultra High-Defintion SideVü: 125′ sides, 250′ total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20′
• Supported deadrise/Transom angles: Up to 25° deadrise
