Airmar TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin f/Navico

AIRMAR TM260-9N TRANSOM MOUNT DUCER 1KW 50/200 KHZ 9 PIN

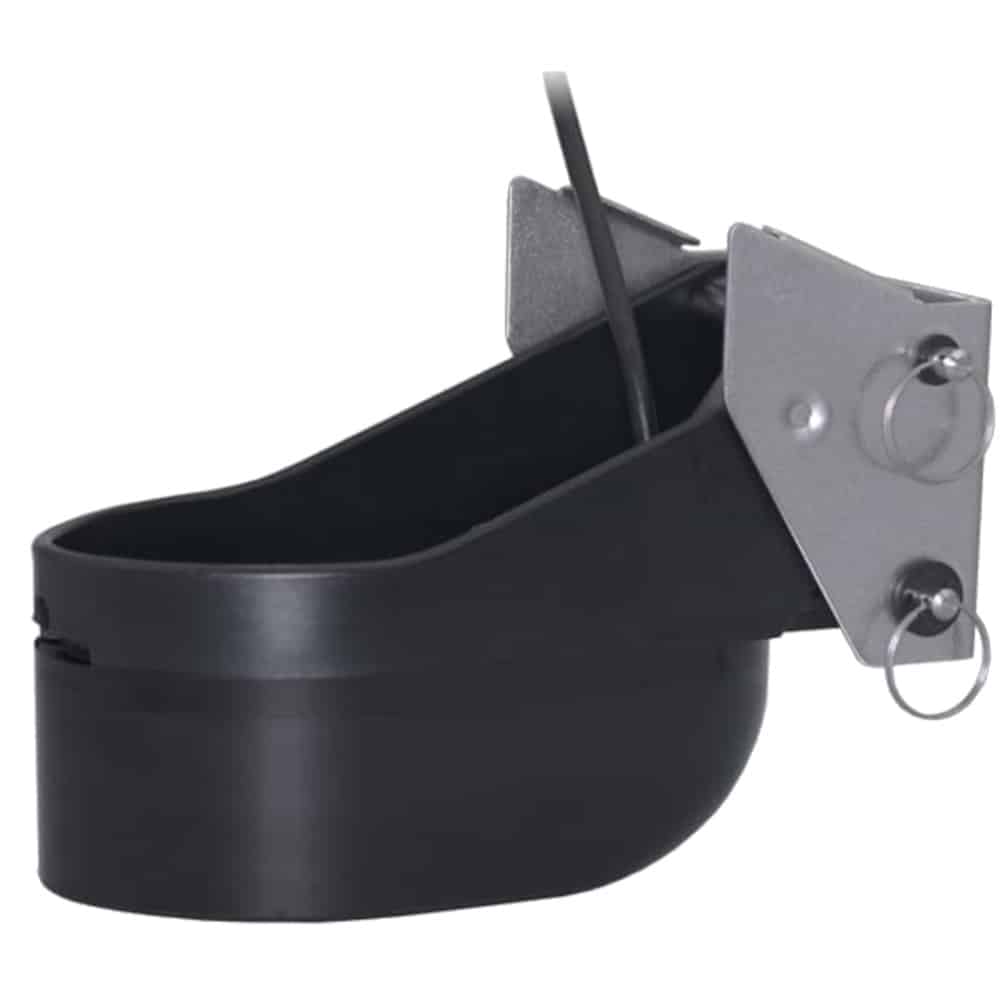

TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin for Navico

TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line 1kW transom-mount brings crystal clear imaging to any of today’s fishfinders. The large 200 kHz element and the seven-element 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s high-performance mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Fishing Applications:

• Blue-water trolling using 50 kHz
• Deep-water bottom and wreck fishing up to 800 m (2,625’)

Features:

• Top-of-the-line narrow-beam transom-mount
• Designed for bottom fishing
• Wide 19° beam at 50 kHz
• Narrow 6° beam at 200 kHz
• Interfaces to any 600 W or 1 kW sounder
• The depth and fast-response water-temperature sensor
• Kick-up assembly locks in the “up” position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane housing
• Boat Size: Up to 12 m (40’)
